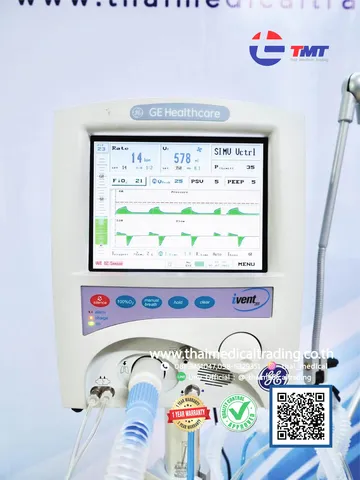

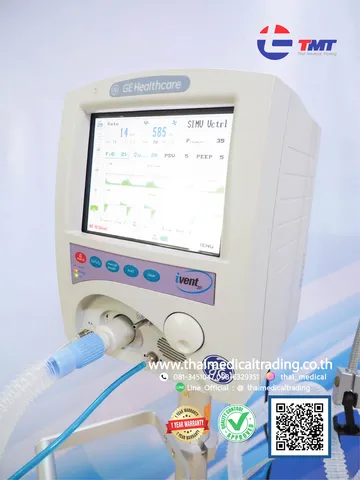

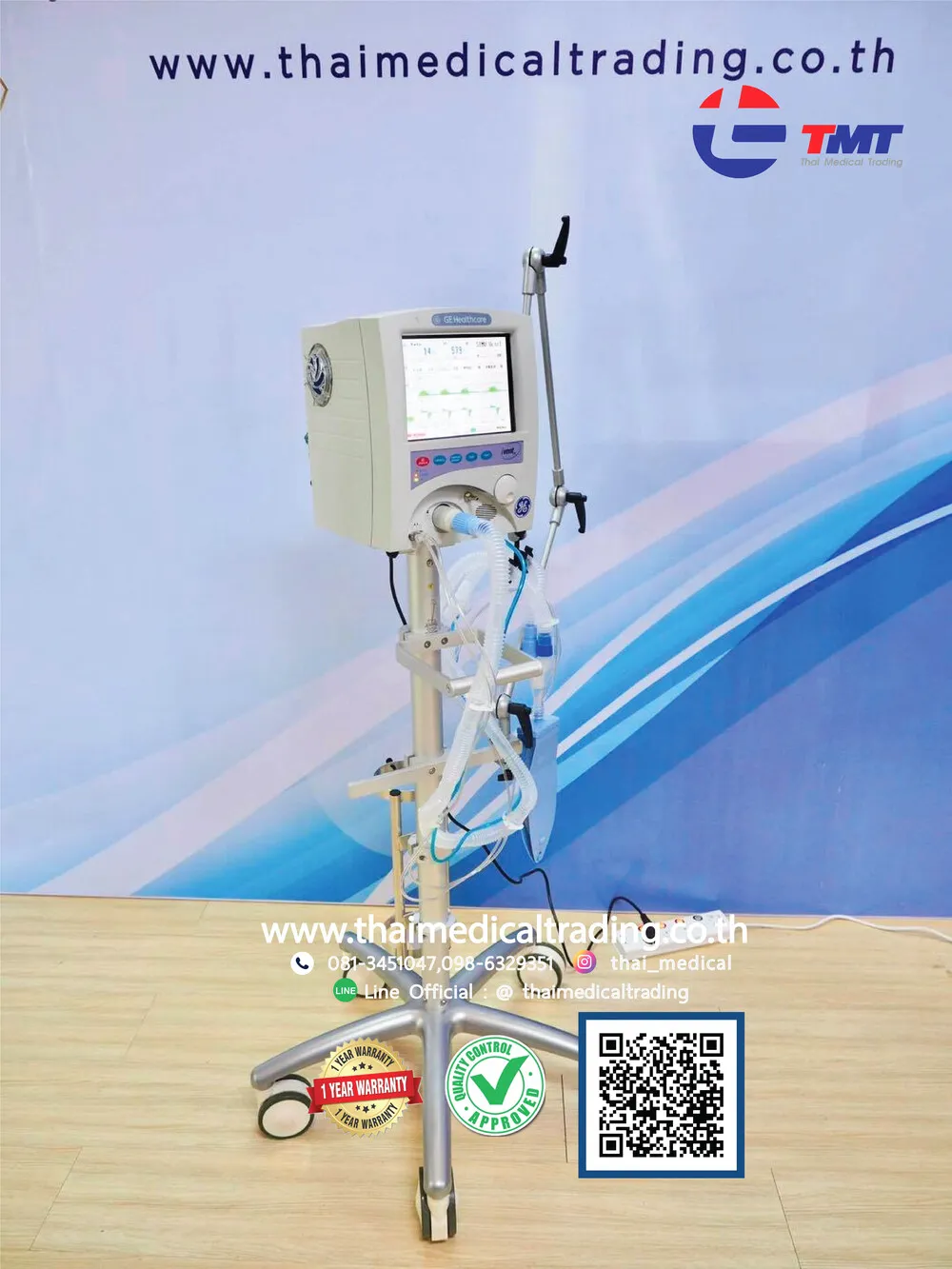

The GE Versamed iVent 201 ventilator has the versatility and capability of larger and more costly ventilators. This ventilator is a compact, portable, multi-featured microprocessor-controlled ventilator. The iVent ventilator features a turbine-powered air source and a rechargeable internal battery that provide freedom from wall air and power outlets. It has a well-organized and easy-to-read screen that allows for rapid control and continuous real-time monitoring of patient ventilation. Optional waveform and diagnostic software package display pressure and flow waveform data, loops, trends, and logged totals in a variety of graphic and numerical modes.

• Adaptive Bi-Level (NIV).
• Preset parameters by patient weight.
• Apnea backup ventilation.
• Adjustable rise time.
• Easy Exhale.
• Sigh breath.
• 100% O2 suction.

Dimensions

• Height: 13" (33 cm)
• Width: 9.5" (24 cm)
• Depth: 10.3" (26 cm)
• Weight: Up to 27.8 lbs (12.6 kg)

Ventilation Modes

• Assist/Control (A/C)
• Volume Controlled (A/C)
• Pressure Controlled (A/C)
• Synchronized Intermittent Mandatory Ventilation (SIMV)
• Volume Controlled SIMV (Vctrl)
• Pressure Controlled SIMV (Pctrl)
• Continuous Positive Airway Pressure (CPAP) with Pressure Support Ventilation (PSV)

O2 Supply Specifications

• High Pressure: Pressure Range 40 –75psi (2.8-5.1 bar). Warning: The exact oxygen pressure which the iVent 201 uses depends on the version you have. Check the back label for the pressure levels of your unit.
• Low Pressure: Maximum flow 15L/min or 0.5 psi

Ventilation Performance and Parameters

• Respiratory Rate: 1 – 12 ±1, 12 – 80 ± 2 bpm
• Tidal Volume: 50-2000 mL
• Accuracy of Tidal Volume Delivery: ±10% or ±10 mL whichever is greater
• Accuracy of Exhale Tidal Volume Measurement: ±15% above 100 mL from actual reading or ±10 cc below 100 mL
• Inspiratory Pressure Limit: 5 to 80 ±5 cmH2O
• Inspiratory Time: Adaptive Time or 0.2 to 3 ±10% sec
• Peak Flow (PIF): Adaptive Flow or to 120 ±10% L/min Spontaneous to 180 ±10% L/min
• Oxygen Mix (FiO2 ): 21% to 100% ±10% of the set value or ±3% absolute, whichever is greater
• PEEP: 0 to 40 ±1 cmH2O or ±10%, whichever is greater
• Trigger Sensitivity: 1 to 20 L/min Flow, Off - 0.5 to – 20 cmH2O Pressure, Off
• PSV: 0 to 60 ±10% cmH2O
• Positive Pressure Relief Valve: 80 cmH2O
• Pneumatic Nebulizer: 5 to 240 minutes
• Controlled Pressure: 5 to 80 cmH2O ±5 cmH2O
• FiO2 at Power up: 21%, 40%, 60%, 100% (configurable)
• Configurable Humidifier Setting (Purging Cycle): HME (10 minute), Heated (1 minutes), Off

Power Supply

• External AC: 100 to 240 V, 50 to 60 Hz, Max 1.6 A
• External DC: 12 to 15 V, Max 8.5 A
• Internal battery: Sealed lead-acid 12 V (7.8 Ah) (rechargeable)
• Operating time: Depending on ventilator settings and impedance – standard internal up to 2 hours, optional extended internal up to 4 hours and optional external up to 8 hours.

Oxygen Supply

• High pressure supply: 40 to 75 psi (2.8 to 5.1 bar)
• Low pressure: Max 15 L/min or 0.5 psi

Environmental

• Operating temperature: 0 to 50° C/32 to 120° F
• Storage temperature: –15 to 70° C/–4 to 140°F
• Relative humidity: 15 to 95% at 30° C/85° F
• Water/dust resistance: IP54 (splash proof)
• Atmospheric pressure: 430 to 825 mm Hg (15,000 feet)
• Vibration:
• IEC 68-2-6 and IEC 68-2-34
• mIL-STD-810E
• Shock:Total external sound level: 40 to 45 dBa at one meter
• IEC 68-2-27 (100 g)
• MIL-STD-810E

Ventilation Performance and Controlled Parameters

• Respiratory rate: 1 to 80 bpm
• Tidal volume: 50 to 2,000 ml
• Inspiratory pressure limit: 5 to 80 cm H2O
• Inspiratory time: Adaptive I-Time* or 0.2 to 3 sec
• Esens: 10-90%
• Rise time: Mid/high/max/auto
• Peak flow: Adaptive Flow* or 1 to 120 L/min; Spontaneous up to 180 L/min
• Oxygen mix (FiO2): 21 to 100%
• PEEP: 0 to 40 cm H2O
• Trigger sensitivity: 1 to 20 L/min flow sensitivity –0.5, to –20 cm H2O pressure sensitivity
• PSV: 0 to 60 cm H2O
• Positive pressure relief valve: 80 cm H2O
• Synchronized nebulizer: 5 to 240 min

Monitoring and Displayed Parameters

• Airway pressure (analog bar graph & numerical)
• Total breath rate
• I:E ratio
• Exhaled tidal volume
• Exhaled minute volume
• Peak flow
• Inspiratory time
• Electrical power source (AC/external DC/internal DC)
• Battery level
• Pressure, flow and volume Waveforms software package:Trending of monitored data (72 hours)
• Real-time pressure and flow waveforms
• Waveform history brows
• Respiratory mechanics (C, R, MAP, RR/Vt)SpO2
• Pressure, flow and volume loops
