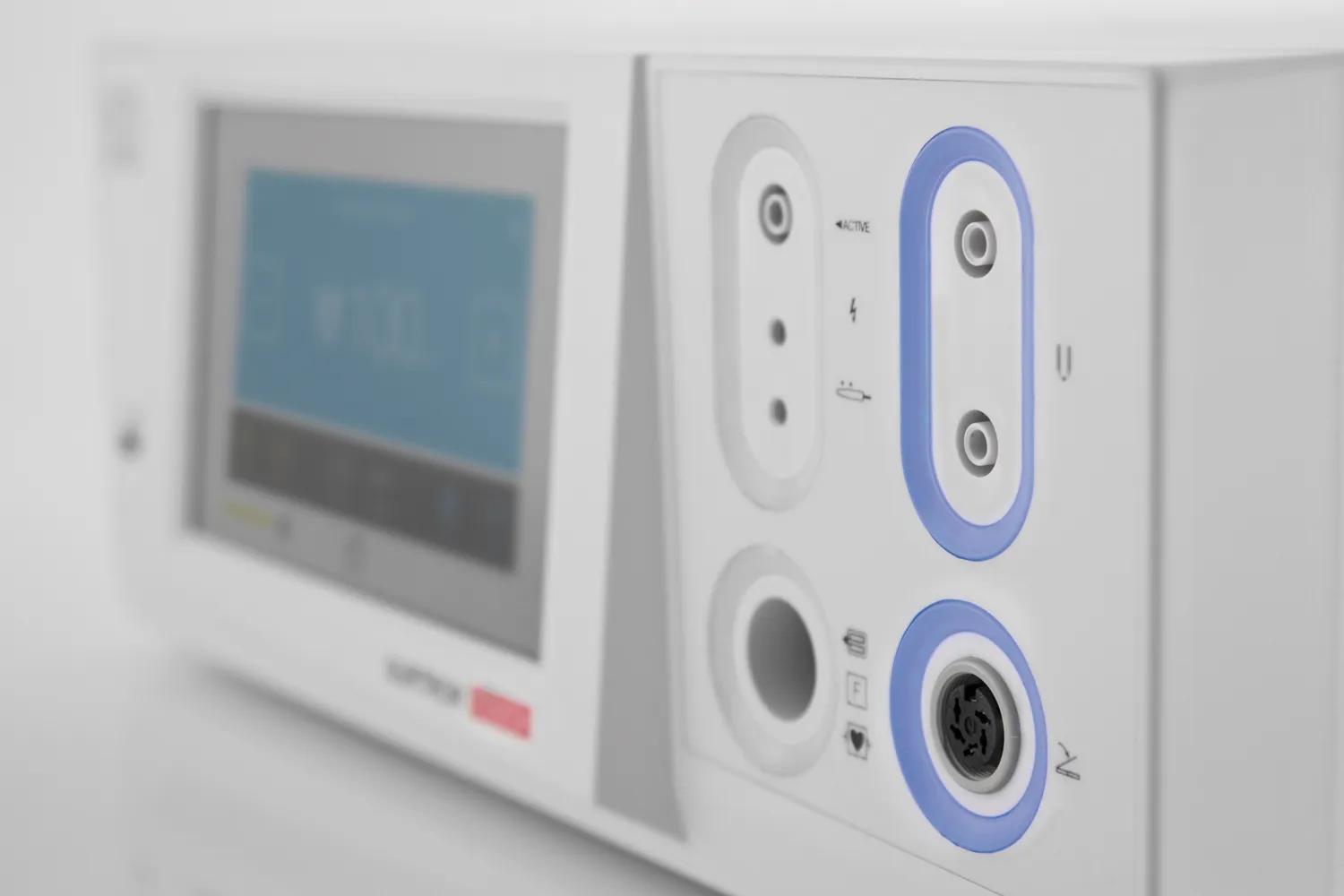

SURTRON® TOUCH is an High Frequency electrosurgical equipment which is suitable for precision monopolar and bipolar surgery and micro-surgery without tissue alterations.

SURTRON® TOUCH can supply HF operative powers either for programmable time as short as hundreds of a second.

The unit through its performances allows pure CUT,  cut-coagulation BLEND, incision with reduced production of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG, bipolar CUT and COAG. The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of work.

SURTRON® TOUCH allows a highly professional surgery thanks to the user-friendly and safety solutions normally used.

The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

UNDERWATER CUTTING AND COAGULATION

FEATURES
Code 10100.T40
Max power PURE CUT
200 W – 300 Ω
Max power BLEND CUT
150 W – 300 Ω
Max power ENHANCED CUT
150 W – 300 Ω
Max power BIPOLAR TUR
200 W – 50 Ω
Max power BIPOLAR PURE
120 W – 50 Ω
Max power FORCED COAG
150 W – 200 Ω
Max power SOFT COAG
100 W – 200 Ω
Max power FULGURATION COAG
100 W – 1000 Ω
Potenza max BIPOLAR COAG
120 W – 50 Ω
Max power BIPOLAR SEALING
200 W – 50 Ω
Working frequency
360 kHz
RF power pulse emission time
10ms-30sec
RF power pulse interval
1-30
Patient circuit F
Selectable input voltage 90-240 Vac
Mains Frequency 50-60 Hz
Electrical input power 750 VA
Size WxHxD 370x145x300 mm
Weight 5.8kg

CONTROLS
Patient/Plate circuit monitoring
Output power monitoring
Self check control

SAFETY
EN60601-1
EN60601-1-2
EN60601-2-2
Electrical classification: I CF
MDD 93/42 / EC: II b
